NIJ Certified Level IV Side Plates (26227-26228)
~SOLD IN PAIRS~

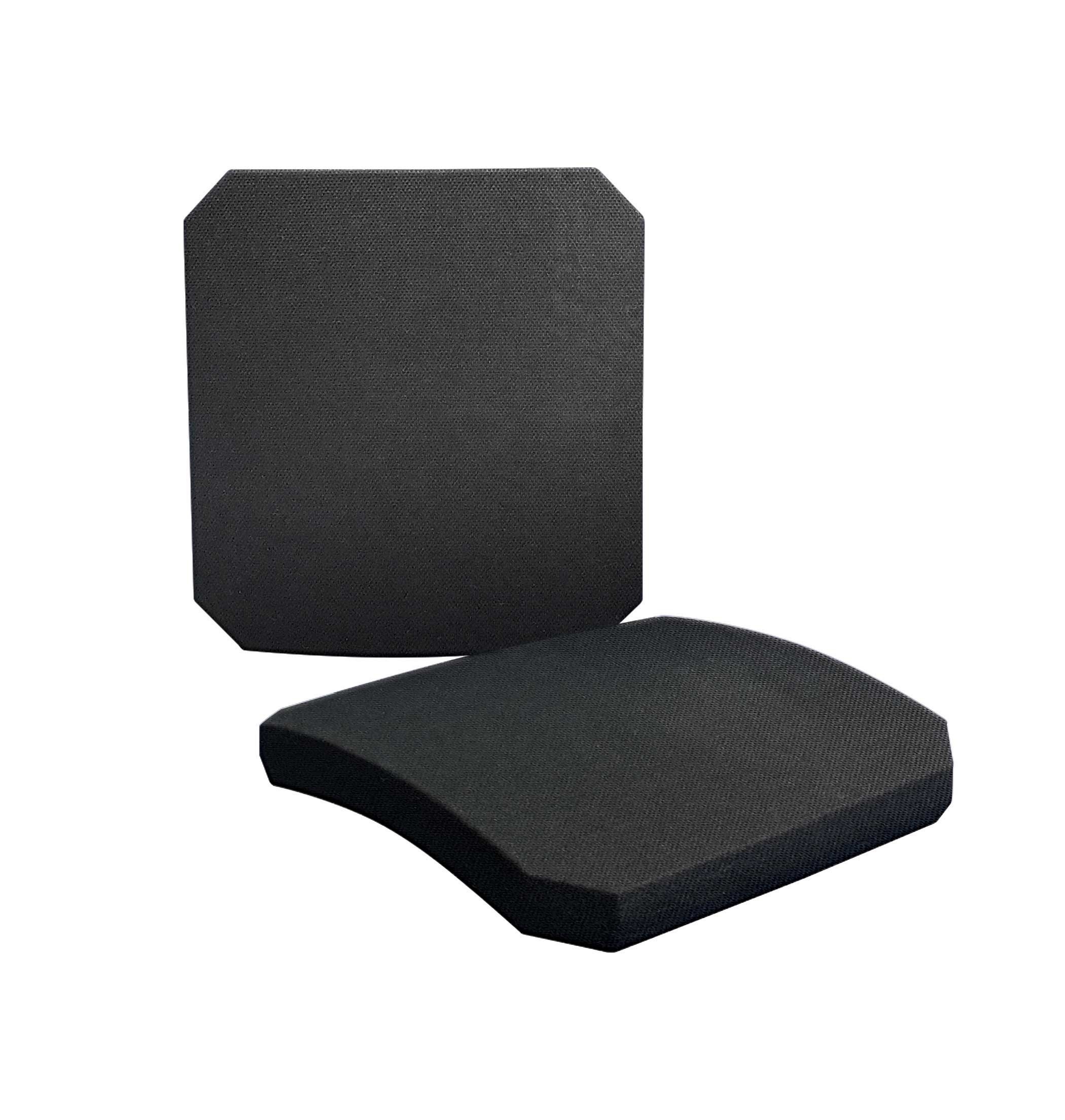

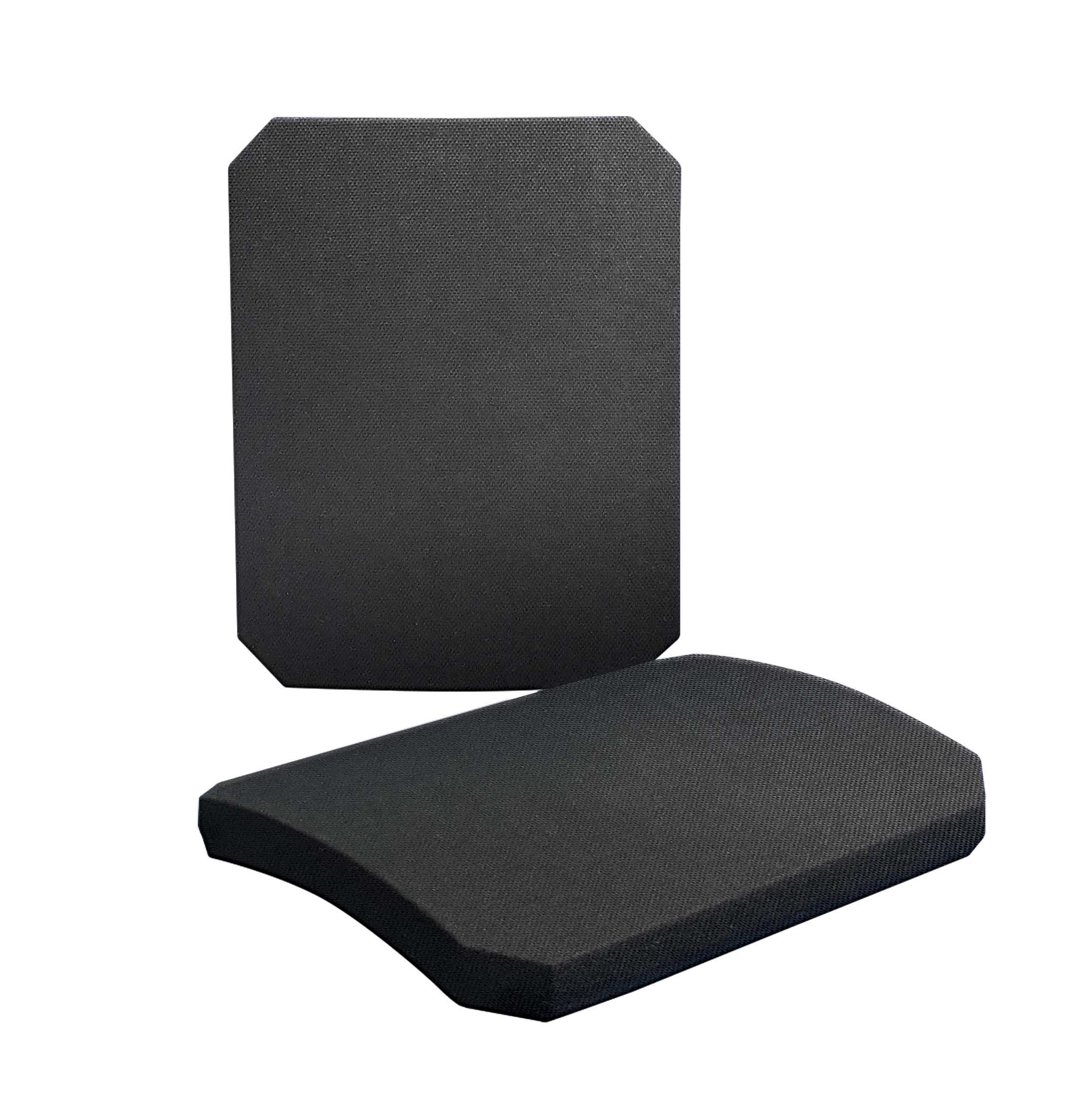

Nominal 6×6 or 6x8 inch single curve hard armor side plate. Manufactured from high-density alumina ceramic core (Al2O3) backed with layered composite fiber. Finished in a black cordura nylon covering.
Ballistic Protection to NIJ 0101.05 Level IV Stand Alone.
All our Hard Armor Plates are Made in the USA by LTC, Leading Technology Composites, the worlds largest and most respected body armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal. Some variation based on manufacturing tolerance may apply.
Some popular items/sizes may incur a 4-8 week lead time.

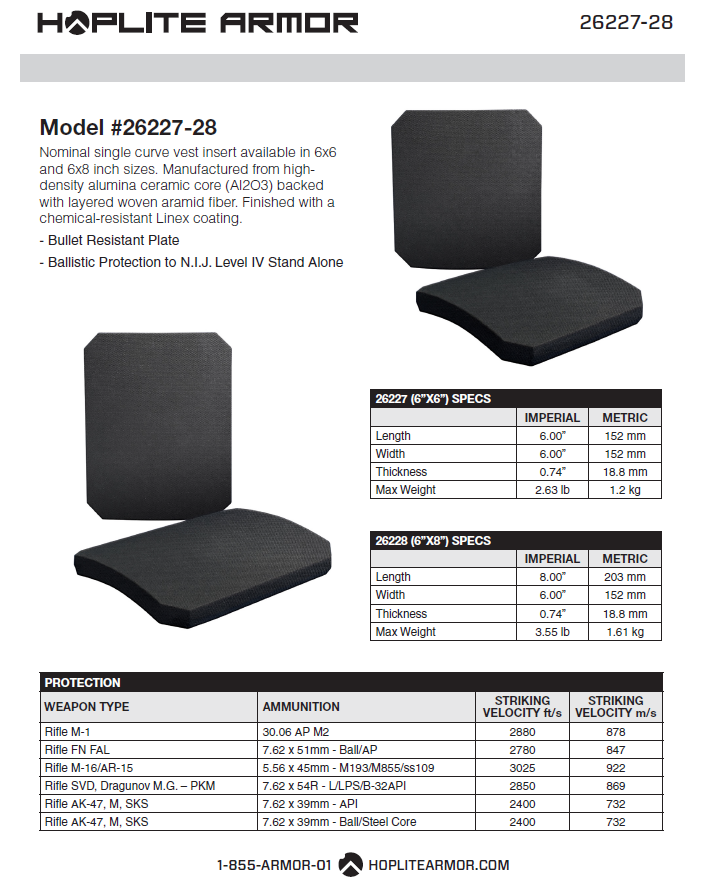

Specs:
- Weight: 2.63 lbs, 3.5 lb
- Thickness: .73"
- Level: IV
Rounds Defeated:
| Weapon |
Ammunition |
STRIKING
VELOCITY ft/s
|
STRIKING
VELOCITY m/s
|
| Rifle M-1 |
30.06 AP M2 |
2880 |
878 |
| Rifle FN FAL |
7.62x51mm - Ball/AP |
2780 |
847 |
| Rifle M-16/AR-15 |
5.56x45mm-M193
M855/M855A1
|
3025 |
922 |
|
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-L/LPS/B-32 API |
2850 |
869 |
| Rifle AK-47,M,SKS |
7.62x39mm-API |
2410 |
735 |
Size:
6" x 6"
6" x 8"
Weights and measurements are nominal
