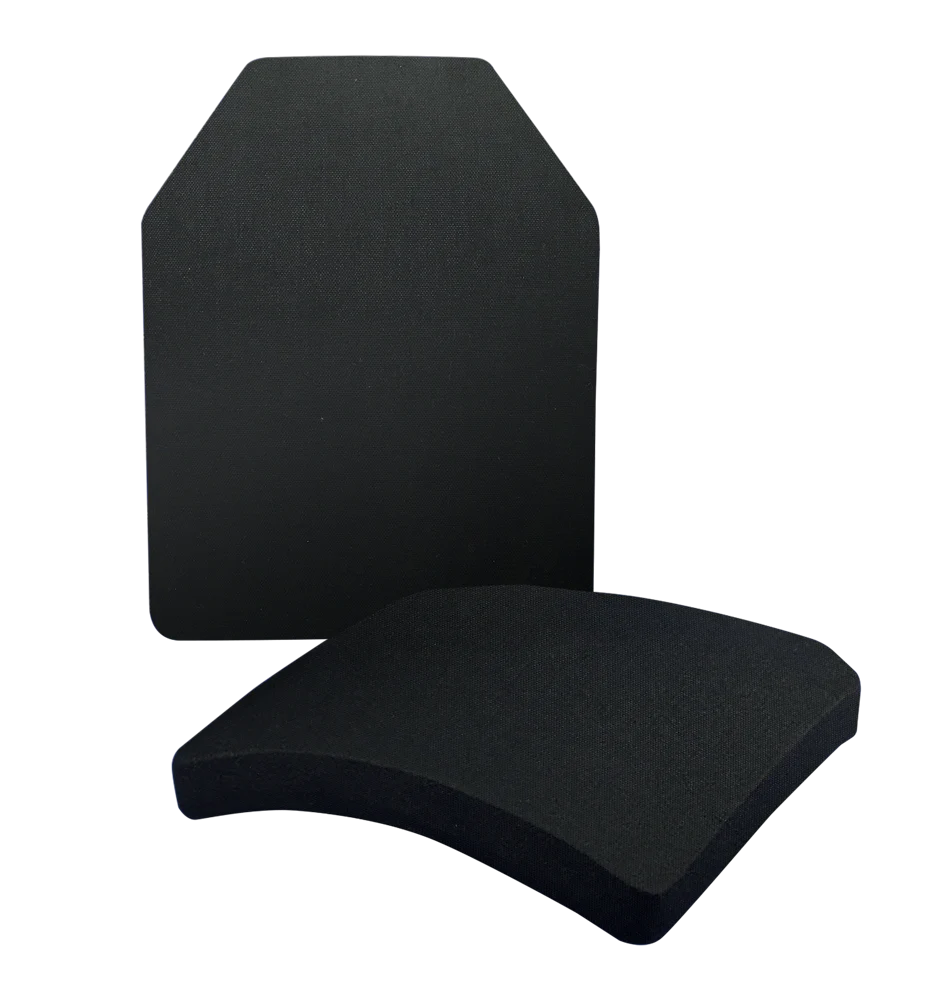

Level IV SAPI Plate (26605)
SHIPS IN 6 WEEKS
The 26605 is a Triple-curve hard armor plate certified to NIJ 0101.06 Level IV standards. Constructed of reinforced alumina ceramic core and a lightweight polymer composite fiber, and finished with a black Cordura Nylon Covering, it also features a foam pad on the Strike Face to protect against multiple drops.
Exceeding the NIJ 10 Drop Test, this upgraded version of the 26148 and 26135 series is inspected via X-Ray and is made in the USA by LTC - Leading Technology Composites.
These plates are designed to absorb projectiles, reducing spall, and fit perfectly in a Crye JPC 1.0 or 2.0 SAPI cut carrier.
See the nominal weights and sizes below.
Fits all standard carriers of the same size. Match plates to carrier size.
Sizes:
Small- 8.5”x11.5” 6.5 lbs
Medium- 9.5”x12.50” 7.5 lbs
Large- 10.25”x13.25” 8.5 lbs
XL- 11”x14” 9.75 lbs
SPECS
Rounds Defeated:
| Weapon |
Ammunition |
STRIKING VELOCITY
ft/s
|
STRIKING VELOCITY
m/s
|
| Rifle M-1 |
30.06 AP M2 |
2880 |
878 |
| Rifle FN FAL |
7.62x51mm - M80 Ball |
2780 |
847 |
| Rifle FN FAL |
7.62x51mm - M61 AP |
2780 |
847 |
| Rifle M-16/AR-15 |
5.56x45mm-M193/M855/M855A1 |
3180 |
969 |
|
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-LPS |
2850 |
869 |
|
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-L/LPS/B-32 API |
2850 |
869 |
| Rifle AK-47,M,SKS |
7.62x39mm-API |
2400 |
732 |
| Rifle AK-47,M,SKS |
7.62x39mm-Ball/Steel Core |
2400 |
732 |
Weights and measurements are nominal
